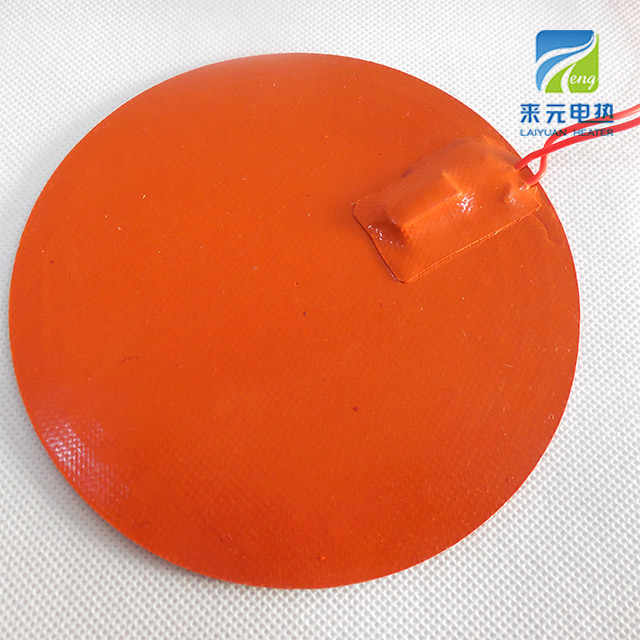

Heat Resistant Silicone Pad 12v Silicone Rubber Heating Pad

Heat Resistant Silicone Pad 12v Silicone Rubber Heating Pad

36

35

34

33

Product Description

Sandwiched construction makes  12v Silicone Rubber Heating Pad  an ideal solution to the requirements of many low and medium temperature applications, which do not conform to the standard shapes, sizes and dimensions of band, strip, cartridge, tubular and open coil air heaters.

When  12v Silicone Rubber Heating Pad are made with a pressure sensitive adhesive backing, a thin layer of aluminum is added prior to the adhesive layer, in order to improve heat transfer and maintain its uniformity. The watt density of   12v Silicone Rubber Heating Pad  should not be greater than 7 WSI (watts per square inch) when PSA (pressure sensitive adhesive) is used.

  12v Silicone Rubber Heating Pad/Tape can also be vulcanized to a silicone rubber sponge for insulation.

Product name

12v Silicone Rubber Heating Pad

Working Temperature

-60°C ~+200°C

Max Temperature

230°C

Power Deviation

8% insulation

Resistance

≥ 5 MΩ

Standard Width

20mm~1200mm

Standard Length

Up to 25mm

Standard Lead Wire

200mm long
